Self-Powered 12V 1kHz Desulfator

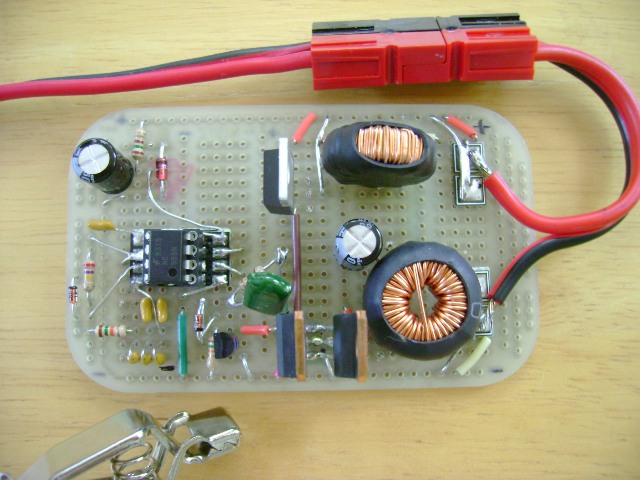

Battery Desulfator Assembly

12V battery desulfator assembled on mint tin proto board
Note the enhanced turn off parts are on the board but unused
The output pulse is ~50uS wide and total duration is ~1mS, ~1kHz
Heatsinks were added to the TO-220 diode and FETs after this picture

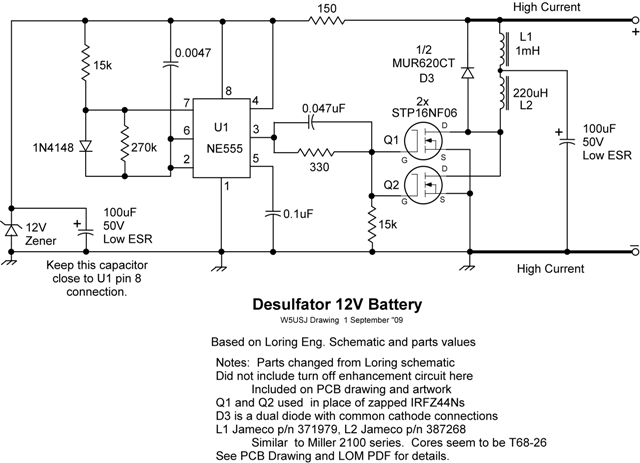

12V Desulfator Schematic


Desulfator Schematic

Self-Powered 12V battery desulfator
Based on a circuit from Loring Eng. found on the web via a search



Download Desulfator PCB Drawing and LOM PDF here — Desulfator PCB Drawing and LOM

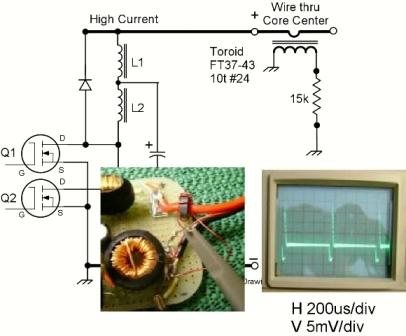

Desulfator Pulse O'scope Pickup Circuit

Desulfating pulse into battery

O'scope view of the pulse going into the battery — uncalibrated, for reference only
The toroid inductor pickup is similar in application to one used in a directional coupler
Tests so far indicate that the desulfator does not discharge the battery during desulfation


2009 Chuck Carpenter, W5USJ — Rev 27 Nov 09
