Project Contents


Some of my favorite projects

Home


Keyers My first modern electronic keyer kit is the Code Boy Pup. I reviewed this one in the QRP ARCI Journal. Since then I’ve built several others. The K1EL K-12 is the most recent. I like the K-12 command menu the best.



More Details...

Deluxe Keyer

Z-Matchers Deluxe Z-Match

Z-matchers using designs from the notes and articles by Charlie Lofgren, W6JJZ. Rebuilt the ZM-2 with a ‘JJZ dual-tuned coil and dual Z matching links — worked much better.



More Details...


Rock-Mites HiMite-15 The super little crystal controlled transceiver from SWL and Dave Benson.

Lots of fun to build, make mods, enhancements and operate. Now incldes the new HiMite series.

Rock-Mite Details...

HiMite-15 Details...

Rock Mite

Power Meters NoGaWatt Meter

Uses the NoGaWatt SWR bridge in combination with a modified Accuprobe kit.

In combination the two kits have features and functions similar to the OHR WM-2.



More Details...


Field Strength Meter Something I built to give me a visual indication of RF output on 80 through 10. Uses a dual-tuned input circuit similar to the W6JJZ z-match coils.



More Details...

Deluxe Keyer

Tenna Dipper Tenna Dipper

One of KD1JV’s, neat kits being sold by 4SQRP to support OzarkCon. It’s used to tune and find antenna resonance.



More Details...


Tiny
Tornado
The Tiny Tornado is a variation of the Pixie II sold as a kit thru QRPp-I. It includes plated through holes on a two-sided PCB. TT is a close to minimal CW transceiver for any 1 band, 80 thru 10.



More Details...

Tiny Tornado

Antennas Antennas

Some VHF/UHF quads with my UHMW plastic spreader block and helicals built for 2.4 GHz. (13 cm)



More Details...


Odds
and
Ends
A variety of projects that get used around the shack but aren’t in any specific category. The picture here is the AADE L/C Meter IIB built from a kit. A most useful tool for the builder.



More Details...

AADE LC Meter

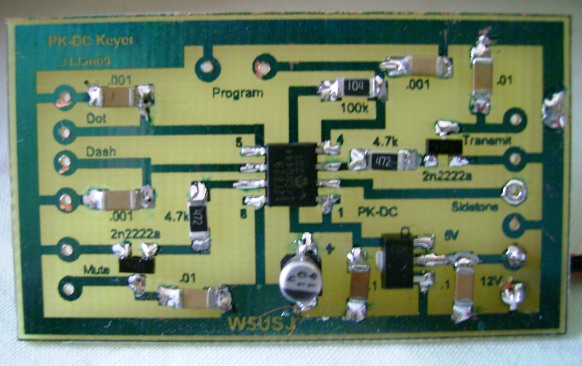

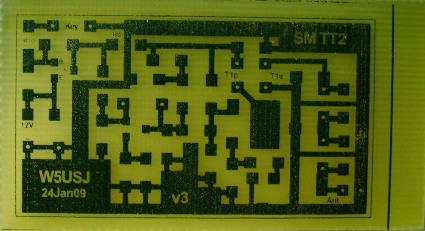

Surface Mount Projects Antennas

Basic surface mount projects using only the larger size parts for easier assembly



More Details...


. . . That's all for now folks
